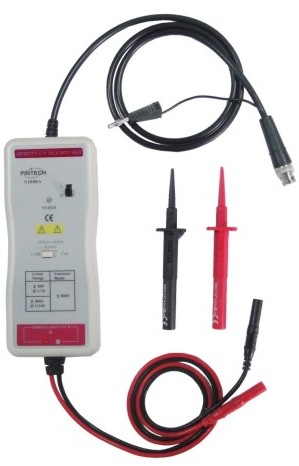

High-Voltage High-Precision Active Differential Oscilloscope Probe N1000A
Standard Passive Oscilloscope Probe P6060 US$379.95     Free Express Shipping





More differential probes in the catalog Differential Probes.
Price on Requst.
Attenuation Ratio 1:100, 1:1000
Bandwidth DC ~ 40 MHz
Rising Time 8.75 ns
Accuracy ± 1%
Input Impedance 4 MΩ || 7pF each side to ground
Max. Input Differential Voltage (DC+Peak AC) 1:100:  ±140V
1:1000:  ±1400V
Max. Input and Ground Potential Difference (DC+ Peak AC) 1:100 and 1:1000: ±1400V
Absolute Max. Input Voltage (each side to ground) 1000Vrms CAT III
CMRR (Typical) -80dB @ 60 Hz, -50dB @ 1 MHz
Output Swing (into 50kΩ load) 7 V
Output Offset (typical) < ±5 mV
Output Impedance (typical) 50 Ω
Length of BNC Cable 90 cm
Length of Input Leads 30 cm
Weight 500g
